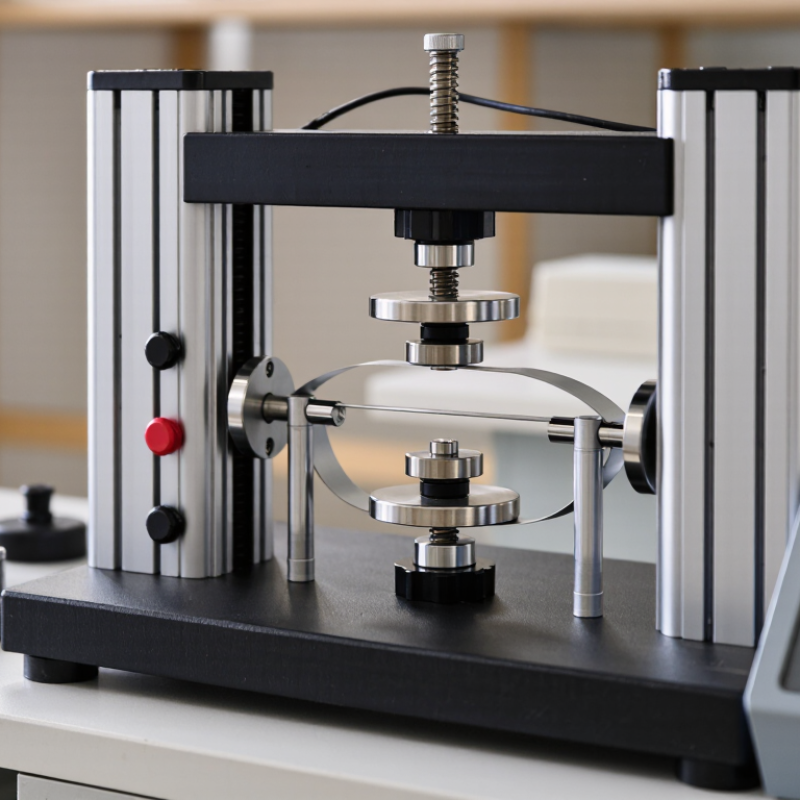

What Is a Small Tensile Testing Machine?

A small tensile testing machine brings laboratory-grade measurement into a compact, controlled workspace. It pulls a specimen until failure, recording force, extension, tensile strength, and elongation. The setup may fit beside a production bench, yet its results can influence material selection, quality control, and product safety.

Market reports show why this equipment matters. Grand View Research valued the global materials testing market at approximately USD 7.7 billion in 2023. It also projects continued growth through 2030, supported by aerospace, automotive, electronics, and construction demand. Fortune Business Insights similarly identifies universal testing machines as a growing equipment segment. However, these reports rarely isolate small tensile testing machine sales. That limitation deserves attention.

Dr. John R. Davis, editor of ASM International’s Tensile Testing, described tensile testing as “one of the most common and useful mechanical tests.” His statement remains practical today. A narrow strip, a carefully aligned grip, and a steadily moving crosshead can reveal hidden weakness. The machine’s size does not guarantee accuracy. Calibration, specimen preparation, gripping pressure, and software settings still matter. ASTM E8/E8M and ISO 6892-1 provide widely recognized testing guidance, but laboratories must select the correct method for each material.

A reliable small tensile testing machine should offer suitable load capacity, repeatable speed control, secure grips, and traceable calibration. Some compact models sacrifice versatility for affordability. That trade-off may be acceptable, but it should be examined before purchase. The best choice is not always the smallest machine. It is the one that produces defensible data within the user’s real testing environment.

What Is a Small Tensile Testing Machine?
Table of Contents [Hide]
1 Definition and Purpose of a Small Tensile Testing Machine
2 Main Components and How the Machine Operates
3 Materials and Properties Measured During Tensile Testing
4 Standard Testing Procedure and Result Interpretation
5 Key Applications, Benefits, and Selection Considerations

Definition and Purpose of a Small Tensile Testing Machine

What Is a Small Tensile Testing Machine?

Definition and Purpose of a Small Tensile Testing Machine

A small tensile testing machine is a compact laboratory instrument that pulls a specimen until it stretches, yields, or breaks. It measures how materials respond to controlled tension. Common results include tensile strength, elongation, yield force, and elastic modulus.

Its compact frame suits laboratories, classrooms, workshops, and quality-control areas with limited space. A typical test uses two grips, a load cell, and a motor-driven crosshead. The upper grip moves at a specified speed while the machine records force and extension. For example, a narrow plastic strip may extend several millimeters before failure. A thin metal wire may show very little elongation but require greater force.

The main purpose is reliable material comparison. Engineers can examine films, wires, fibers, rubber parts, fasteners, and small molded components. Test settings must match the material and applicable testing method. Grip pressure matters. Excessive pressure can damage soft specimens before the test begins. Poor alignment can also create misleading bending forces.

Regular calibration supports trustworthy measurements. Operators should inspect grips, check the zero reading, and record specimen dimensions carefully. In practice, results can still vary. Humidity, cutting marks, and uneven thickness may affect the curve. A clean graph does not guarantee a perfect test. Even experienced users should question unusual results and repeat the test when necessary.

What Is a Small Tensile Testing Machine? - Definition and Purpose of a Small Tensile Testing Machine
Dimension Typical Information Definition or Purpose
Basic Definition A compact electromechanical testing system designed to apply controlled tensile force to a specimen. It measures how a material or product responds when it is pulled until it stretches, yields, or breaks.
Primary Measurement Force, displacement, extension, tensile stress, and strain. These measurements help determine material strength, deformation behavior, and failure characteristics.
Typical Force Capacity Common compact systems are available in capacities from several hundred newtons to tens of kilonewtons, depending on the application. The selected capacity should exceed the expected maximum test force without sacrificing measurement accuracy.
Machine Footprint Usually smaller and lighter than floor-standing laboratory or industrial tensile frames; many models fit on a workbench. The compact format is suitable for laboratories, classrooms, production areas, and quality-control stations with limited space.
Operating Principle A motor-driven crosshead moves at a controlled speed while a load cell records the applied force. The controlled movement produces repeatable force and deformation data during the test.
Common Test Materials Plastics, rubber, textiles, paper, films, thin metal parts, wires, adhesives, and small finished products. Different grips and fixtures allow the same basic frame to evaluate a wide range of specimen shapes and materials.
Typical Specimen Forms Dog-bone specimens, strips, wires, threads, films, fibers, small components, and bonded joints. The specimen form is selected according to the material, product geometry, and applicable test method.
Important Strength Results Ultimate tensile strength, yield strength, breaking force, and maximum load. These values indicate the highest load a specimen can withstand and the point at which permanent deformation or failure occurs.
Important Deformation Results Elongation at break, extension, strain, modulus, and displacement at a specified force. Deformation results describe whether a material is relatively stiff, flexible, ductile, or brittle.
Test Speed The crosshead speed is normally programmable and depends on the test method and material. Using a specified speed improves comparability because many materials show different behavior at different loading rates.
Control and Data Recording Digital control commonly records force and displacement as a load–extension or stress–strain curve. Recorded curves support calculations, pass/fail decisions, comparison between batches, and technical reporting.
Applicable Standards Testing may be performed according to relevant ASTM, ISO, EN, or other recognized material and product standards. Following a defined standard specifies specimen dimensions, gripping, test speed, calculations, and reporting requirements.
Common Gripping Options Wedge grips, pneumatic grips, screw grips, vise grips, textile clamps, and specialized fixtures. The grip must hold the specimen securely while minimizing slippage, crushing, and premature damage near the grip.
Quality-Control Use Incoming-material inspection, production checks, batch comparison, and verification of product consistency. Regular tensile testing helps identify changes in raw materials, processing conditions, or product performance.
Research and Development Use Material screening, formulation comparison, prototype evaluation, and failure analysis. The machine provides quantitative evidence for selecting materials and improving designs or manufacturing processes.
Main Advantages Space efficiency, relatively simple operation, lower sample requirements, and suitability for lower-force applications. These advantages make a small tensile testing machine practical when a full-size industrial frame is unnecessary.
Key Selection Factors Force range, travel distance, speed range, accuracy, grip compatibility, specimen size, and software functions. Matching these factors to the intended test prevents overload, improves repeatability, and ensures meaningful results.
Basic Safety Requirements Secure specimen mounting, suitable guarding, emergency stopping, correct load-cell selection, and operator training. Tensile tests can release stored elastic energy or produce broken fragments, so safe operation is essential.

Note: Force capacity, dimensions, speed range, accuracy, and available fixtures vary by machine configuration. The values above describe common characteristics of small tensile testing systems rather than a specific model.

Main Components and How the Machine Operates

What Is a Small Tensile Testing Machine?

A small tensile testing machine measures how materials respond to controlled pulling. Its main components include a rigid frame, motor, load cell, grips, crosshead, and digital controller. The frame resists bending while the motor moves the crosshead at a selected speed. The grips hold a prepared specimen, often a narrow metal strip or plastic dog-bone sample. The load cell records force, while an extensometer measures elongation. It looks simple. The setup is not.

During a test, the machine applies tension until the specimen yields, stretches, or breaks. Software converts force and extension into stress-strain data. Engineers use these curves to identify tensile strength, yield strength, and elongation. ISO 7500-1:2018 defines force-verification classes, including Class 1 accuracy within ±1% from 20% to 100% of machine capacity. ISO 9513 also addresses extensometer verification. ASTM E8/E8M and ISO 6892-1 provide widely used tensile-testing methods. These standards matter because a neat graph can still hide poor alignment, slippage, or incorrect gauge length.

Tips: Keep the load cell near the expected force range. A machine rated far above the specimen may reduce useful resolution. Check grip alignment before every test. Inspect fracture surfaces, too. They often reveal mistakes that software cannot. In practice, operators sometimes trust automated results too quickly. That habit deserves review. Calibration records, specimen dimensions, test speed, and room temperature should remain traceable for reliable comparison.

Materials and Properties Measured During Tensile Testing

What Is a Small Tensile Testing Machine?

A small tensile testing machine applies controlled pulling force to a specimen until it stretches or breaks. Its compact frame suits thin sheets, wires, films, fibers, plastics, and small metal samples. The machine usually includes grips, a load cell, and a displacement sensor. Some laboratories also use an extensometer for more accurate strain readings.

Materials behave differently under tension. A metal may show a clear yield point before permanent deformation begins. Many plastics stretch gradually, while brittle materials may fracture with little warning. The test records force and extension, then converts them into stress and strain.

Engineers commonly examine tensile strength, yield strength, elongation at break, and elastic modulus. These values help reveal stiffness, ductility, and failure behavior. Sample thickness matters greatly. A small measurement error can distort the result.

Tips: Align the specimen carefully between the grips. Keep its gauge length consistent. Check the force range before testing. A loose grip can create false slipping data. I would also inspect the fracture surface, not only the graph. The curve may look clean, yet an uneven cut or scratched edge can weaken the sample. Test temperature and humidity deserve attention, especially for polymers and fibers. Results should be compared with a suitable testing method and repeated enough to expose variation. One test is rarely the whole story.

Standard Testing Procedure and Result Interpretation

What Is a Small Tensile Testing Machine?

Standard Testing Procedure and Result Interpretation

A small tensile testing machine measures how a material behaves under controlled pulling force. It is useful for wires, thin sheets, plastics, and small metal specimens. In practice, I check the machine’s calibration before testing. A loose grip or incorrect load cell can distort the result. The test area should also remain clean and free from vibration.

The operator prepares a specimen according to a recognized method, such as ISO 6892-1 or ASTM E8. Dimensions, gauge length, and thickness must be recorded carefully. The specimen is centered between the grips to prevent bending. After applying a small preload, the machine pulls at a specified rate. Sensors record force and extension continuously. Temperature and humidity may require control for sensitive materials.

The resulting curve usually shows elastic deformation, yielding, strain hardening, and fracture. Young’s modulus describes initial stiffness. Yield strength indicates when permanent deformation begins. Ultimate tensile strength is the highest recorded stress. Elongation at break shows ductility, but it depends on accurate gauge measurements. A sudden curve drop may indicate fracture or slipping. I would not trust one unusual result without examining the broken specimen and repeating the test. Small machines are convenient, yet their limited travel and grip alignment can affect interpretation. Comparing several specimens gives a more reliable material profile.

Small Tensile Testing Machine: Standard Test Result

This representative engineering stress–strain curve describes a low-carbon steel specimen tested according to common tensile-testing practices such as ASTM E8/E8M and ISO 6892-1.

Interpretation: The initial straight section represents elastic behavior, with an approximate elastic modulus of 200 GPa. Yielding begins near 355 MPa at about 0.20% strain. The maximum engineering stress is approximately 550 MPa, which represents the ultimate tensile strength. The decreasing section after the peak indicates necking, and fracture occurs at approximately 25% elongation.

Key Applications, Benefits, and Selection Considerations

What Is a Small Tensile Testing Machine?

A small tensile testing machine measures how materials respond to pulling forces. It stretches a specimen until it yields, elongates, or breaks. Its compact frame suits laboratories, classrooms, workshops, and production areas with limited space. Typical samples include thin wires, plastic strips, films, fibers, and miniature components. Operators can observe load, extension, tensile strength, and break behavior on a controlled graph.

Its applications are practical and varied. Quality teams use it to compare material batches or verify supplier data. Engineers test prototypes before investing in larger production tools. Educators demonstrate stress and strain with clear, visible results. Small machines also reduce material waste, especially when samples are expensive or difficult to prepare. Results become more useful when operators record specimen dimensions, gripping methods, test speed, and room temperature.

Selection requires careful judgment. Match the machine’s force capacity to the expected sample range, not only the strongest material. An oversized load cell may produce weak resolution for delicate films. Check grip design, travel distance, crosshead speed, software controls, and calibration records. Standards support consistency, but they do not fix poor specimen alignment. A compact machine is not automatically the better choice. Some grips can damage soft materials before testing begins. In practice, the neatest setup may still need trial runs, revised fixtures, and patient operator training. Reliability depends on the whole method, not the instrument alone.
