These tensile testing grips are applicable for webbings and ribbons. The webbing is fed through the center slot, the drum is rotated and then pinned to lock it in place. As the specimen is pulled, it tightens on itself preventing slippage. In addition, the drums offer stress relief to prevent the breakage of the specimen in the clamping area.

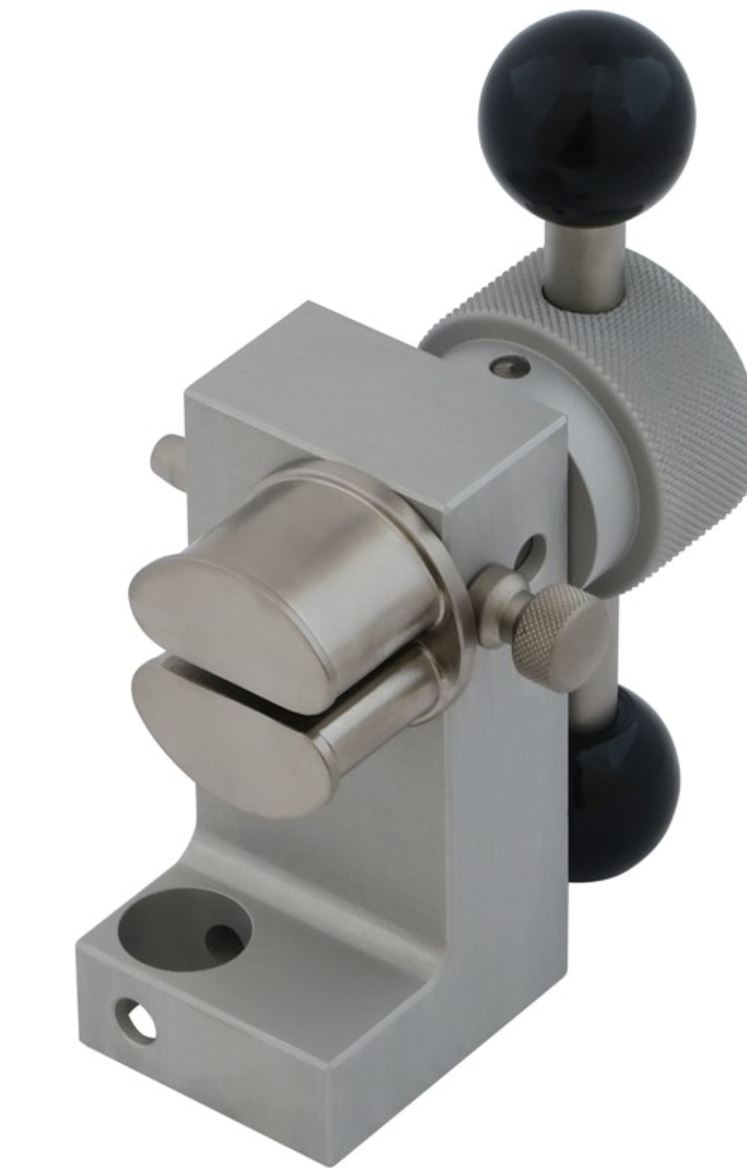

GRW-10T Ribbon/Webbing Grips
- Tensile Force: 10kN
- Specimen Width: Up to 25mm
- Minimum Specimen Length: 550mm
- Specimen Thickness: Up to 2.5mm

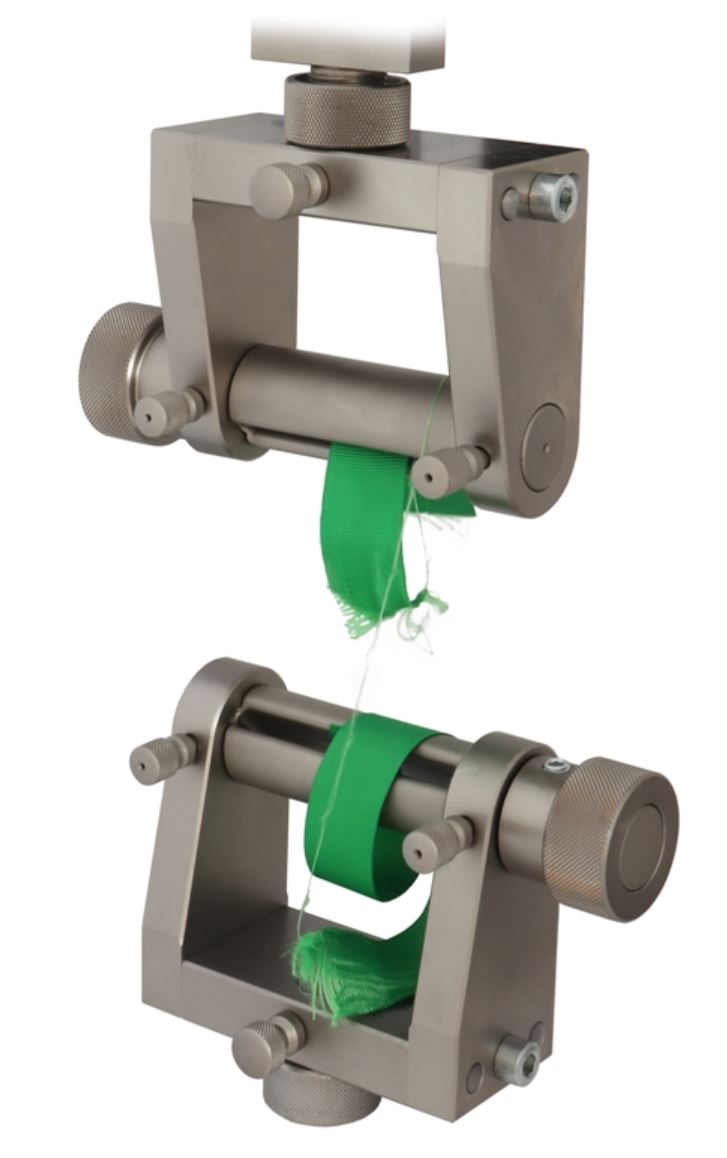

GRW-20T Ribbon/Webbing Grips
- Tensile Force: 20kN
- Specimen Width: Up to 80mm
- Minimum Specimen Length: 460mm
- Specimen Thickness: Up to 5mm

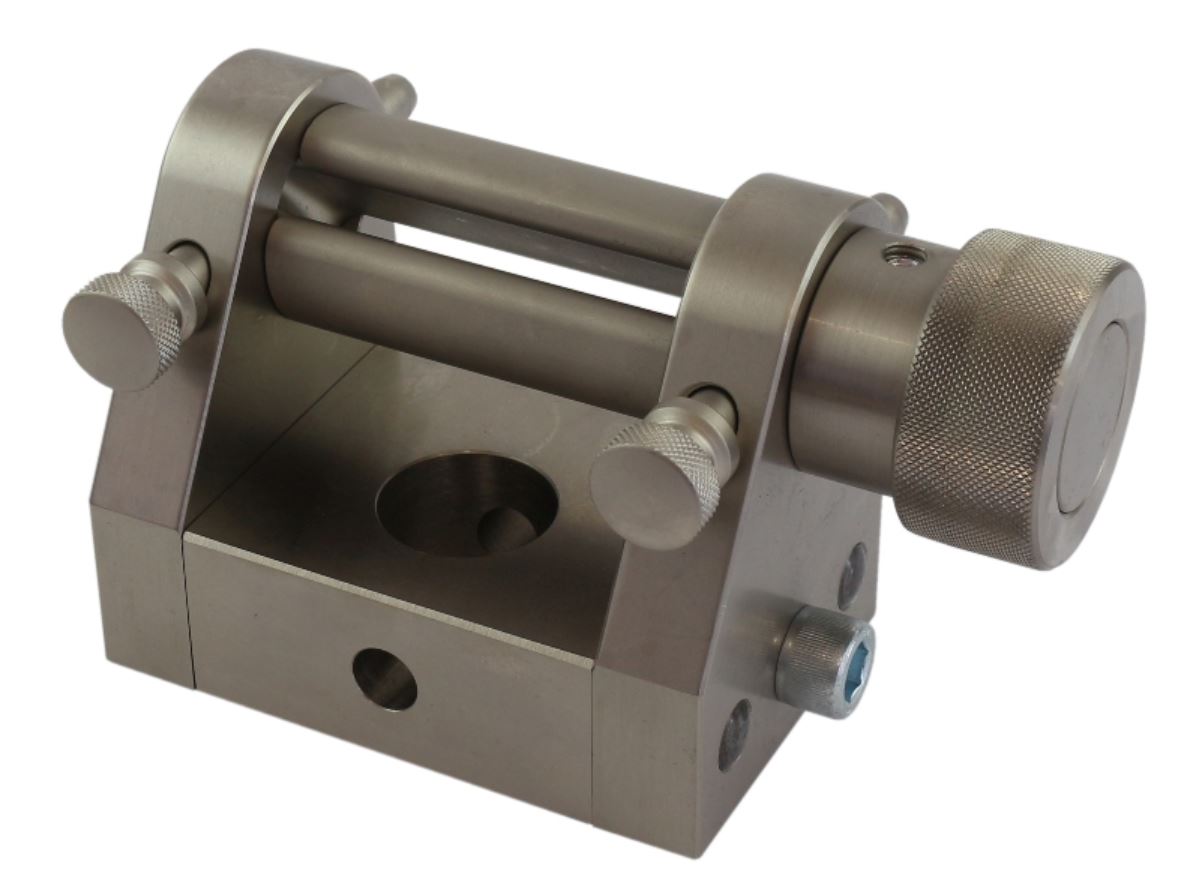

GRW-50T Ribbon/Webbing Grips
- Tensile Force: 50kN
- Specimen Width: Up to 80mm
- Minimum Specimen Length: 600mm
- Specimen Thickness: Up to 7mm

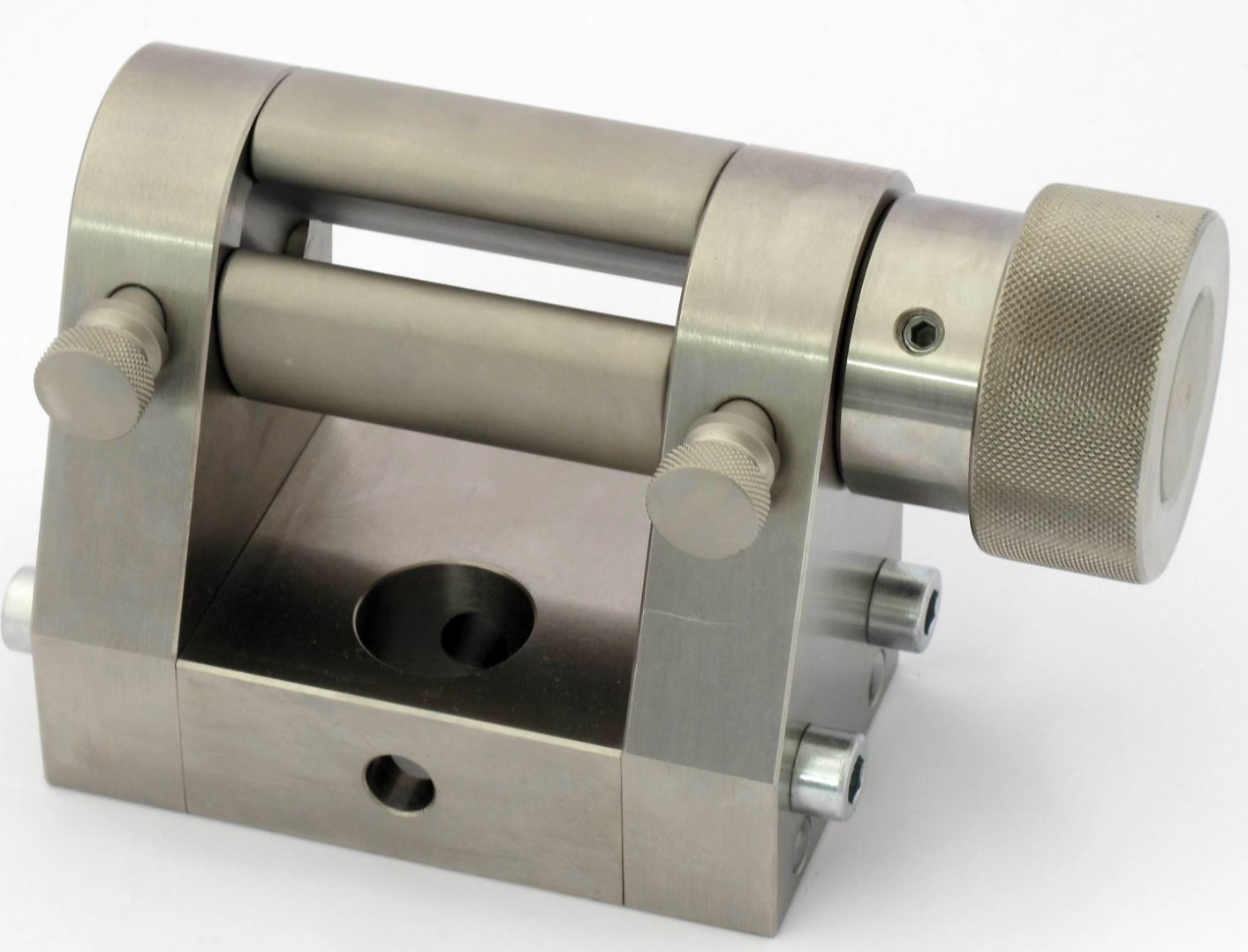

GRW-100T Ribbon/Webbing Grips
- Testing Standard: ASTM D6637
- Tensile Force: 100kN
- Specimen Width: Up to 120mm
- Minimum Specimen Length: 910mm
- Specimen Thickness: Up to 11mm
GRW-250T High-Force Webbing Grips
- Testing Standard: ASTM D6637
- Tensile Force: 250kN
- Roller Width: 120mm
- Roller Diameter: 100 mm

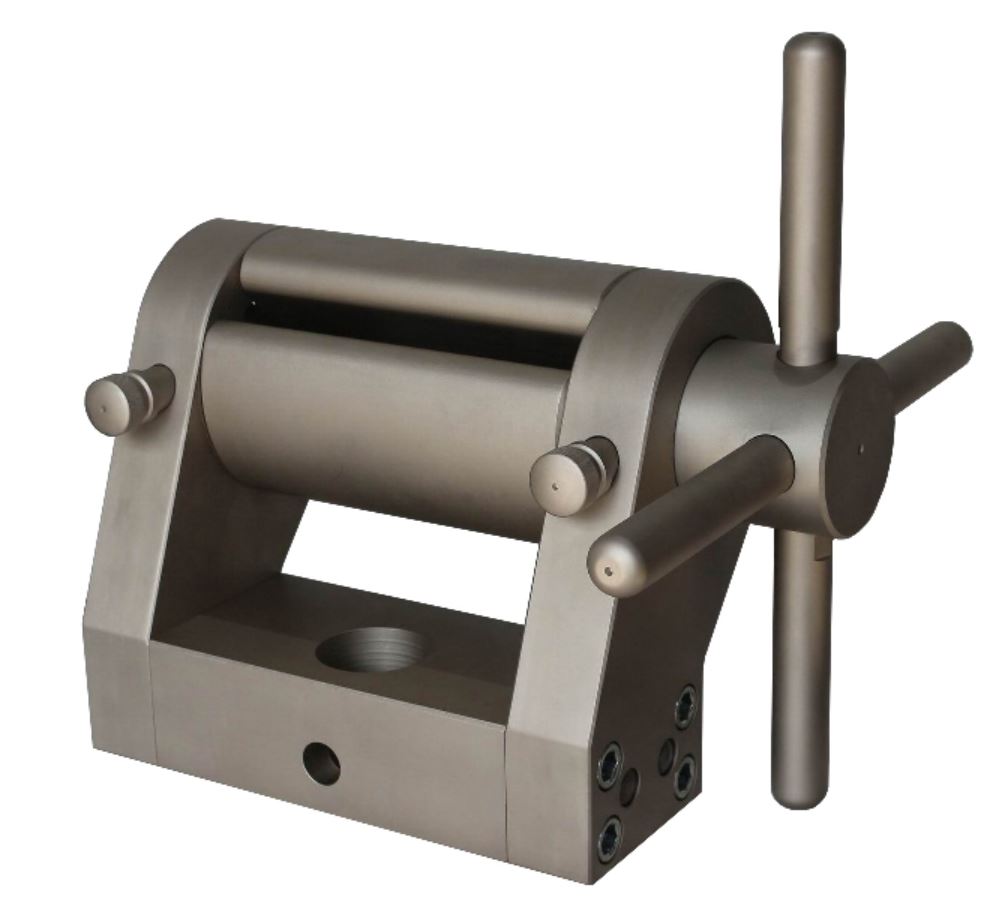

GRW-300T High-Force Webbing Grips
- Tensile Force: 300kN
- Roller Width: 220mm
- Roller Diameter: 150 mm
