ADMET rope and thread grips are applicable for the tensile testing of filaments, cords, yarn, fine wires, narrow ribbons, ropes, and similar materials. The grip design, also called capstan-, drum-, or snubbing-type, allows for secure and efficient clamping for the measurement of tensile strength, elongation, and other mechanical properties.

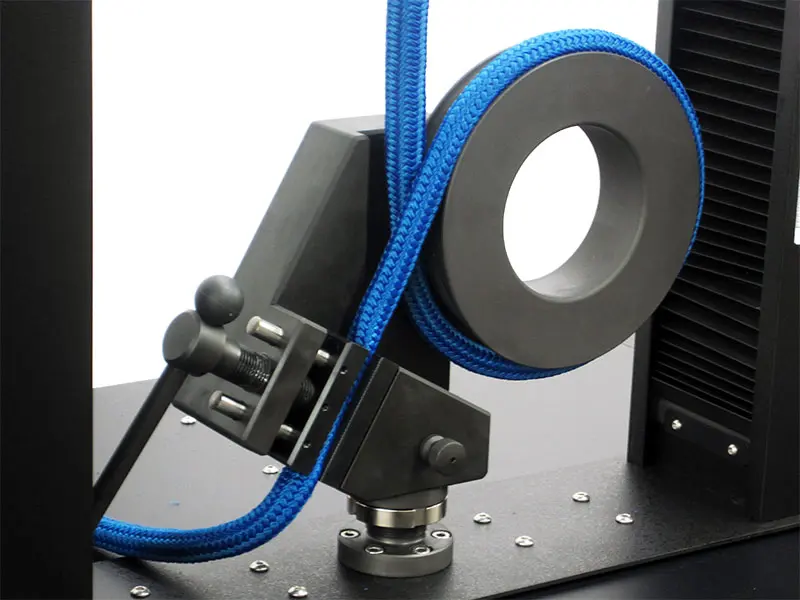

Rope Grips
Rope grips (GR-T) typically consist of two opposing jaws that close around the specimen. They often have serrated or textured surfaces to increase friction and grip strength, preventing slippage. Read our informative blog post on Rope Testing here.

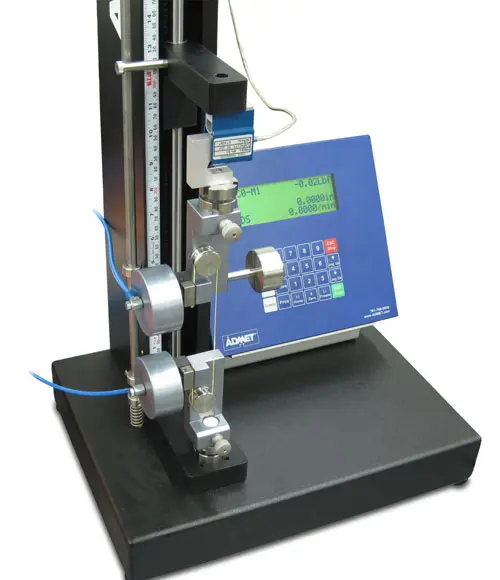

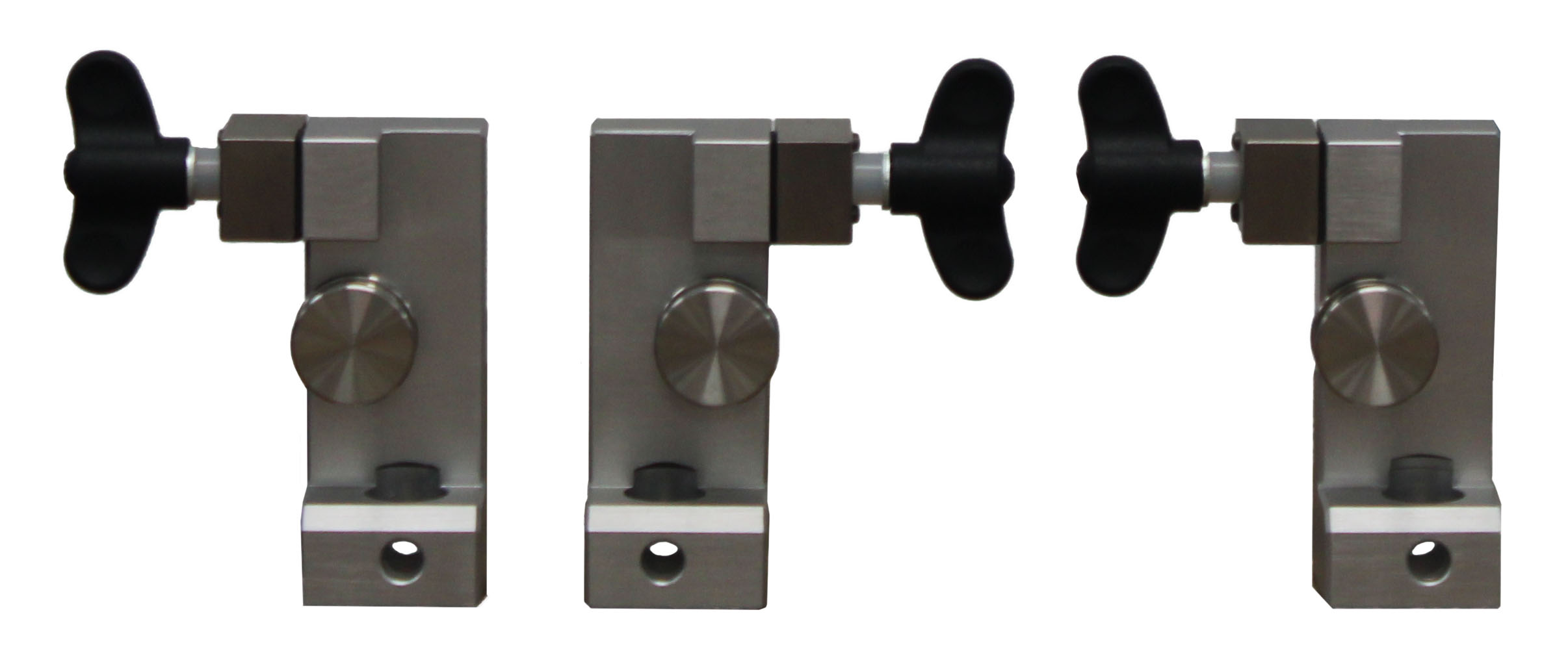

GR-1T Filament Grips
- Testing Standard: ASTM D2256
- Tensile Force: 1kN
- Specimen Diameter: Up to 2mm
- Minimum Specimen Length: 240mm
- Jaw Surface Options: Pyramid (serrated), Blank, Rubber-coated, Diamond-coated

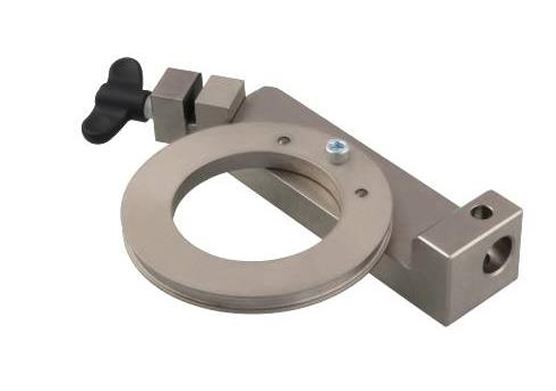

GR-1T-D100 Filament Grips, Wide Drum
- Tensile Force: 1kN
- Specimen Diameter: Up to 2.5mm
- Minimum Specimen Length: 1700mm
- Jaw Surface Options: Pyramid (serrated), Blank, Rubber-coated, Diamond-coated
GR-1T+Ko Filament Grips, Pneumatic Version
- Testing Standard: ASTM D2256
- Tensile Force: 1kN
- Specimen Diameter: Up to 2mm
- Minimum Specimen Length: 240mm
- Jaw Surface Options: Pyramid (serrated), Blank, Rubber-coated, Diamond-coated
GR-5T Snubbing Grips
- Testing Standard: ASTM D2256
- Tensile Force: 5kN
- Specimen Diameter: Up to 5mm
- Minimum Specimen Length: 400mm
- Jaw Surface Options: Pyramid (serrated), Blank, Rubber-coated, Diamond-coated
- Manual and pneumatic versions available

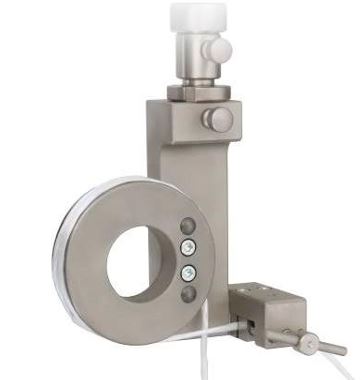

GR-20T Capstan Rope Grips
- Tensile Force: 20kN
- Specimen Diameter: Up to 9mm
- Minimum Specimen Length: 800mm
- Jaw Surface Options: Pyramid (serrated), Blank, Rubber-coated, Diamond-coated
- Manual and pneumatic versions available

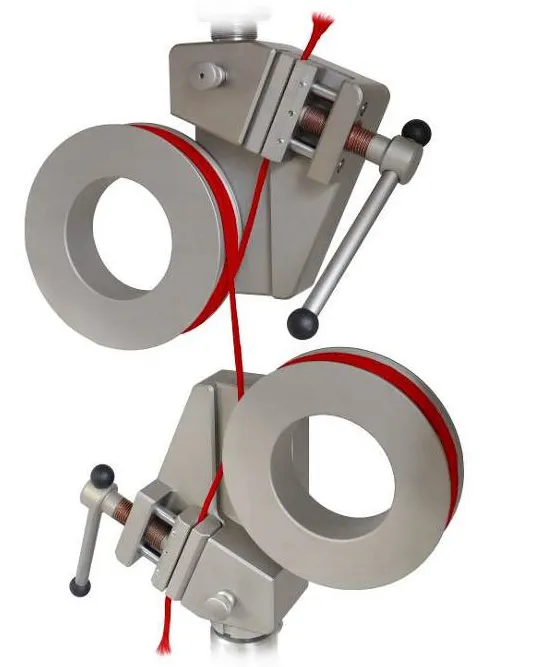

GR-50T Capstan Rope Grips
- Tensile Force: 50kN
- Specimen Diameter: Up to 20mm
- Minimum Specimen Length: 1500mm
- Jaw Surface Options: Pyramid (serrated), Wave, Blank

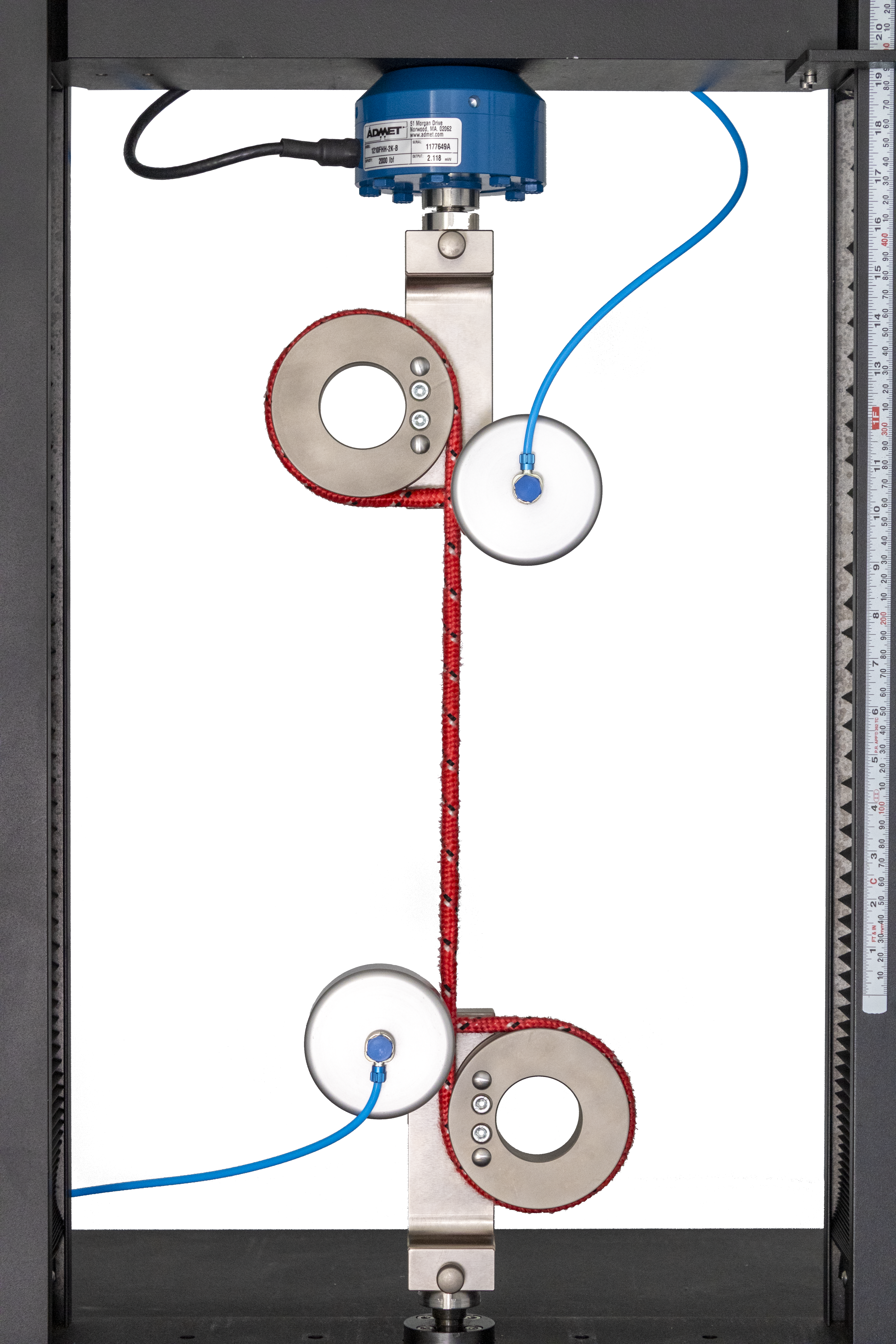

GR-50T+Ko Capstan Rope Grips, Pneumatic Version
- Tensile Force: 50kN
- Specimen Diameter: Up to 20mm
- Minimum Specimen Length: 1500mm
- Jaw Surface Options: Pyramid (serrated), Wave, Blank
GR-100T/150T High-Force Capstan Rope Grips
- Tensile Force: 100kN (GR-100T), 150kN (GR-150T)
- Specimen Diameter: Up to 25mm
- Minimum Specimen Length: 2600mm
- Jaw Surface Options: Pyramid (serrated), Blank
- Manual and pneumatic versions available

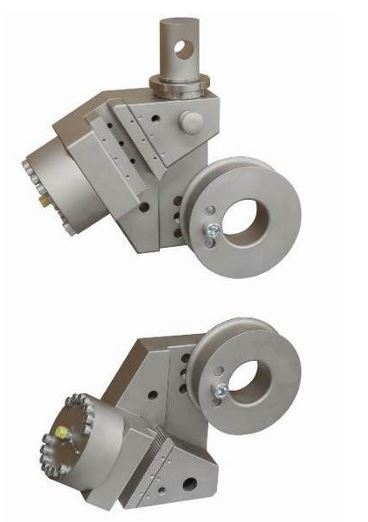

GR-250T High-Force Hydraulic Rope Grip
- Tensile Force: 250kN
- Specimen Diameter: Up to 25mm
- Minimum Specimen Length: 2600mm
- Jaw Surface Options: Pyramid (serrated), Blank
Thread Grips

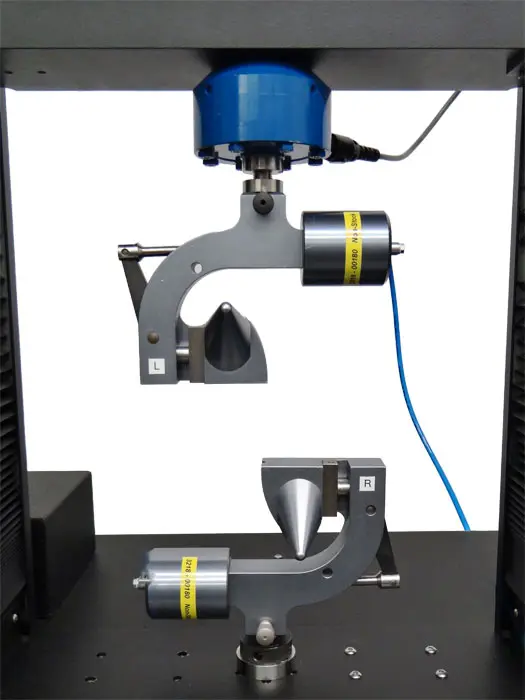

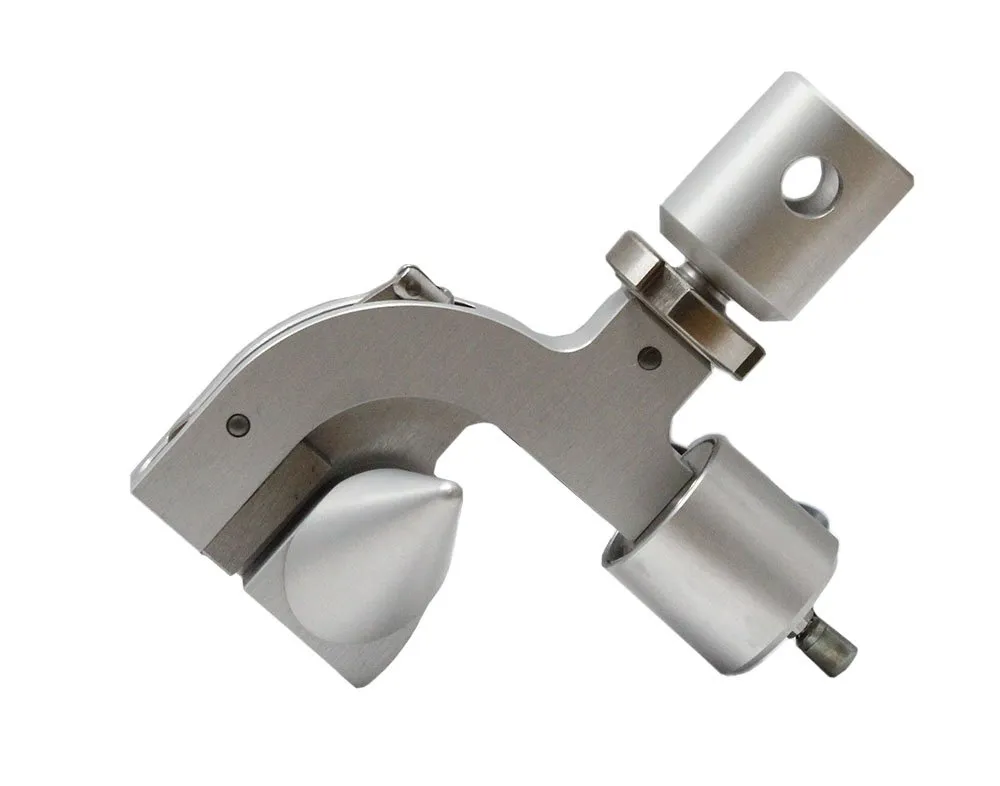

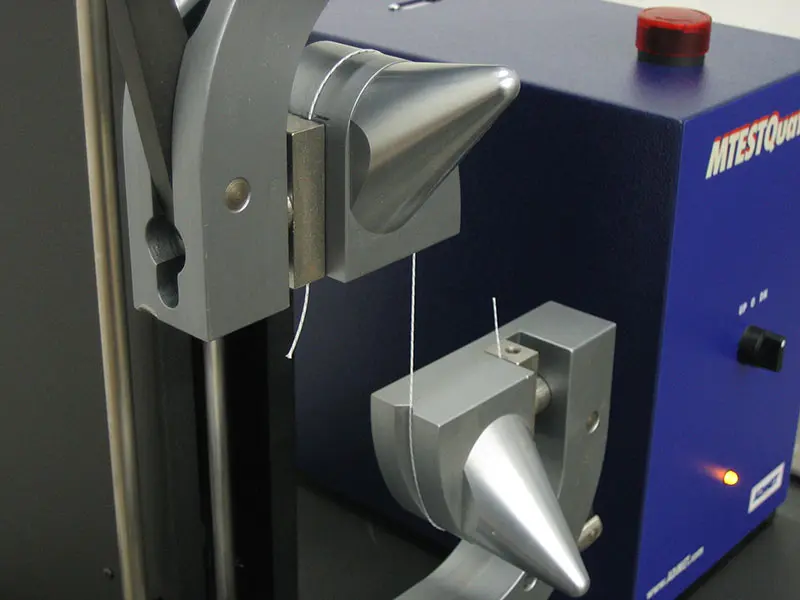

Pneumatic bollard style grips (GT-T) feature a guide horn where the thread, wire, cord, or microfilament sample is wrapped around the bollard. This prevents sample damage and slippage when being pulled in the tensile direction.
GT-0.2T Pneumatic Thread & Filament Grips
- Testing Standard: ASTM D2256
- Tensile Force: 200N
- Specimen Diameter: Up to 1mm
- Minimum Specimen Length: 150mm
- Jaw Surface Options: Pyramid (serrated), Blank, Rubber-coated, Diamond-coated
GT-2T Pneumatic Thread & Cord Grips
- Testing Standard: ASTM D2256
- Tensile Force: 200N
- Specimen Diameter: Up to 2mm
- Minimum Specimen Length: 250mm
- Jaw Surface Options: Pyramid (serrated), Blank, Rubber-coated, Diamond-coated
GT-5T Pneumatic Thread & Wire Grips
- Testing Standard: ASTM D2256
- Tensile Force: 200N
- Specimen Diameter: Up to 3mm
- Minimum Specimen Length: 300mm
- Jaw Surface Options: Pyramid (serrated), Blank, Rubber-coated, Diamond-coated
