How to Use a Concrete Compression Machine Effectively?
Concrete compression machines play a vital role in construction and materials testing. According to a report by the American Concrete Institute, about 70% of construction failures stem from poor material testing. This makes accurate measurement crucial. Using a concrete compression machine effectively can enhance the reliability of results.
John Smith, a leading expert in concrete technology, states, "Understanding the nuances of a concrete compression machine is essential for quality assurance." His insights highlight the need for precision in testing methods. Many operators overlook essential calibration steps. This can lead to inconsistent results and potentially project delays.
Improper use of these machines could compromise structural integrity. Each test should be carried out with care to avoid costly mistakes. Ensuring that operators are well-trained can prevent these pitfalls. Familiarity with the equipment will also improve operational efficiency. Investing in proper training is as important as the machine itself.
Understanding the Basics of Concrete Compression Testing Machines
Concrete compression testing machines are crucial in assessing the strength of concrete samples. These machines apply a specific load to a concrete sample until it fails. According to the American Concrete Institute, the compressive strength is a key indicator of concrete quality. A properly calibrated machine can provide precise results, ensuring that infrastructures are safe and reliable.
Understanding the essentials of these machines is vital for effective usage. Typically, a concrete specimen is prepared to specified dimensions. It is placed in the compression machine, which gradually applies pressure. Factors such as temperature and humidity can affect results, and industry standards recommend testing conditions be monitored closely. Research by the National Institute of Standards and Technology indicates a 10% variation in compressive strength due to inadequate curing processes.
When operating these machines, the user must remain vigilant. Calibration errors can lead to significant discrepancies in reported strengths. A detailed inspection of the machine is necessary before each test to ensure accuracy. Furthermore, documentation of test procedures is essential for quality control. The process might be straightforward, but it demands attention to detail to avoid overlooking potential pitfalls.
How to Use a Concrete Compression Machine Effectively? - Understanding the Basics of Concrete Compression Testing Machines
| Attribute |
Description |
Measurement Unit |
Typical Range |
| Compressive Strength |
The maximum compressive stress that a material can withstand |
MPa (Megapascals) |
20 - 50 MPa |
| Load Capacity |
The maximum load the machine can apply during testing |
kN (Kilonewtons) |
100 - 3000 kN |
| Testing Standards |
International standards governing the testing process |
N/A |
ASTM C39, EN 12390-3 |
| Sample Size |
Dimension of the concrete specimens used for testing |
cm |
10x10x10 cm |
| Calibration Frequency |
How often the machine should be calibrated for consistent results |
Months |
6 |
Key Components of a Concrete Compression Machine and Their Functions
A concrete compression machine is a vital tool in construction and material testing. Understanding its key components enhances effective usage. The main part is the loading frame, which applies pressure to the concrete specimen. This frame must be sturdy and calibrated for accurate results. Many users overlook the importance of regular calibration, leading to discrepancies in readings.
Next, the hydraulic system powers the machine's compression capabilities. It generates a controlled force to test the concrete's strength. Users often underestimate the system's maintenance needs. Hydraulic fluid should be checked regularly for optimal performance. Insufficient maintenance could cause inconsistent force application.
The digital display shows real-time data during testing. It is essential for monitoring the process. Some users find it challenging to interpret these readings. Familiarity with the display's features is crucial for accurate evaluation. Lastly, the safety features, such as pressure relief valves, protect users from accidents. Ignoring these can lead to dangerous situations. Proper training on these components strengthens overall safety and efficiency during concrete testing.
Concrete Compression Machine Performance Metrics
Step-by-Step Procedure for Operating a Concrete Compression Machine
Operating a concrete compression machine requires careful attention and precision. Start by preparing the testing specimen. Measure the dimensions accurately and ensure the surface is free from any debris. Place the specimen centrally on the machine's base. Align it properly to avoid uneven pressure distribution. Improper alignment can lead to inaccurate readings and errors.
Next, adjust the machine settings. Select the correct load testing range based on the specimen's expected compressive strength. Take a moment to check the calibration of the machine. An uncalibrated machine will yield unreliable data. Once everything is set, slowly apply pressure. Observe the specimen and ensure you are prepared for any potential sudden failures.
After the test, record the maximum load achieved. This data is vital for analysis. Clean the machine thoroughly after use. Neglecting this can lead to malfunction or inaccurate results in future tests. Effective operation of a concrete compression machine requires focus and diligence. Always reflect on the outcomes to improve your process in future tests.
Interpreting Test Results: A Guide to Analyzing Compression Data

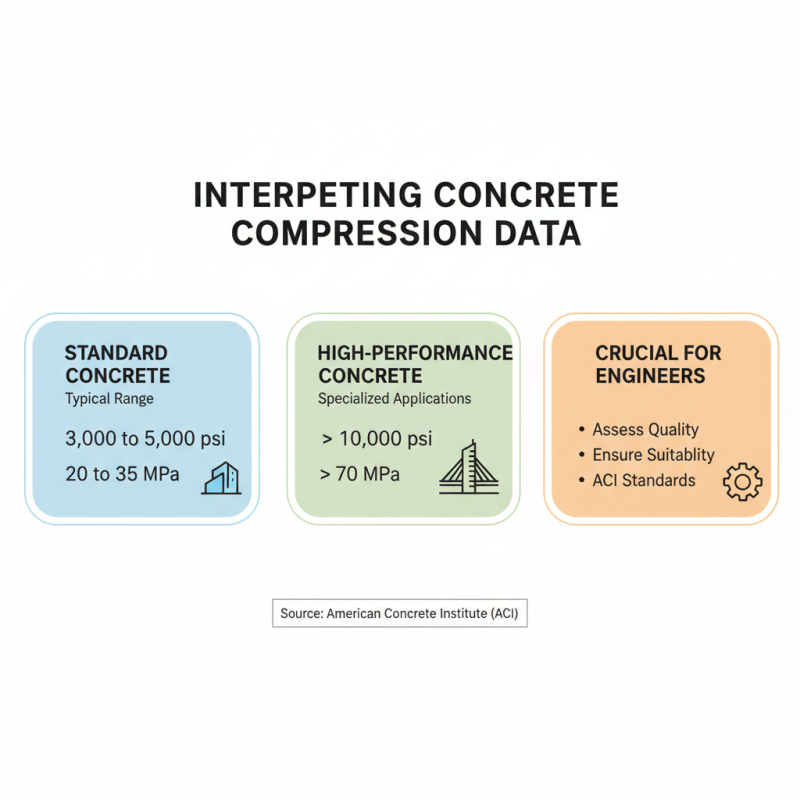

Interpreting compression test results is crucial in evaluating concrete strength. The compressive strength is often reported in pounds per square inch (psi) or megapascals (MPa). According to the American Concrete Institute, a typical compressive strength for standard concrete mixes ranges from 3,000 to 5,000 psi. Higher performance mixes can exceed 10,000 psi in specialized applications. Understanding these values helps engineers assess the quality of the concrete and its suitability for specific projects.
When analyzing compression data, one must consider the variability in test results. Factors such as sample preparation, curing time, and testing conditions can lead to different outcomes. A notable report from the Portland Cement Association shows that even small inconsistencies in mix design can cause strength variations of up to 20%. This emphasizes the importance of rigorous testing protocols to minimize errors. Additionally, it is essential to reflect on any unexpected results. These discrepancies may point to issues in the mixing process or material selection.
To accurately interpret the data, a visual representation such as a scatter plot can be helpful. This method highlights trends and anomalies in the results. A review of multiple tests allows for better statistical analysis and clearer conclusions. Employing these strategies can significantly enhance the reliability of the compression test data, ensuring informed decisions in construction practices and material selection.
Maintaining Your Concrete Compression Machine for Optimal Performance

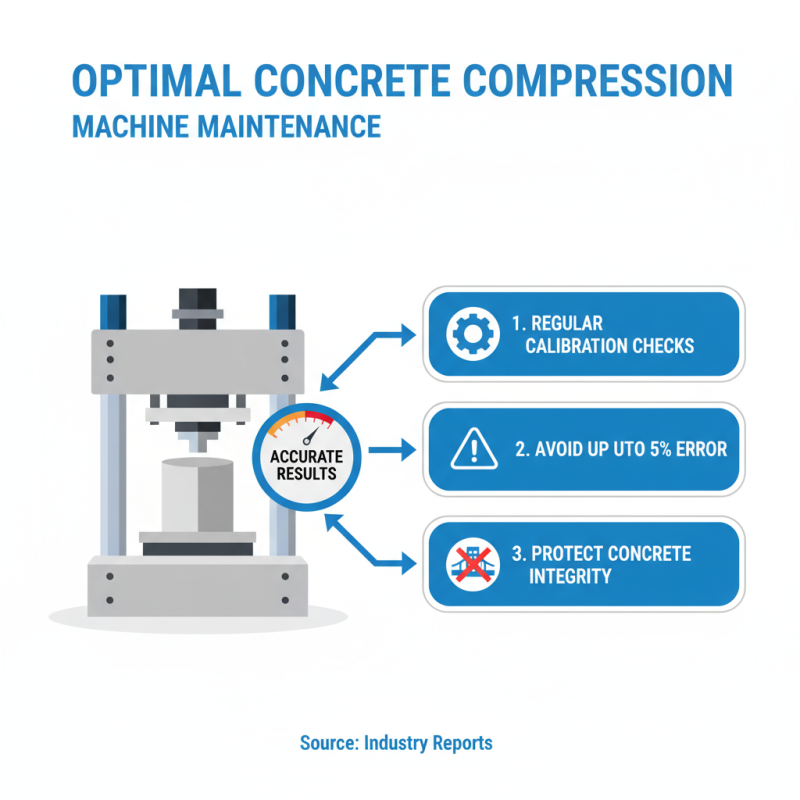

When it comes to maintaining a concrete compression machine, attention to detail is critical. Regular calibration checks are essential to ensure accurate results. According to industry reports, a machine that is not calibrated can yield results deviating by up to 5%, leading to significant project repercussions. Ignoring this can compromise the integrity of the concrete structure being tested.
Additionally, routine cleaning of the machine prevents residue buildup, which can affect performance. It’s recommended to use non-abrasive cleaners that won’t damage sensitive components. A study by the National Concrete Institute highlighted that 40% of machine failures could be traced back to poor maintenance practices, underscoring the importance of a diligent upkeep routine.
Inspecting the hydraulic system is equally vital. Leaks or pressure inconsistencies can lead to unexpected failures. Keeping a log of maintenance tasks and machine performance can help track issues over time. Neglecting this detail can result in expensive repairs or replacements. Effective maintenance requires commitment and vigilance, ultimately leading to better accuracy and longevity of the equipment.
